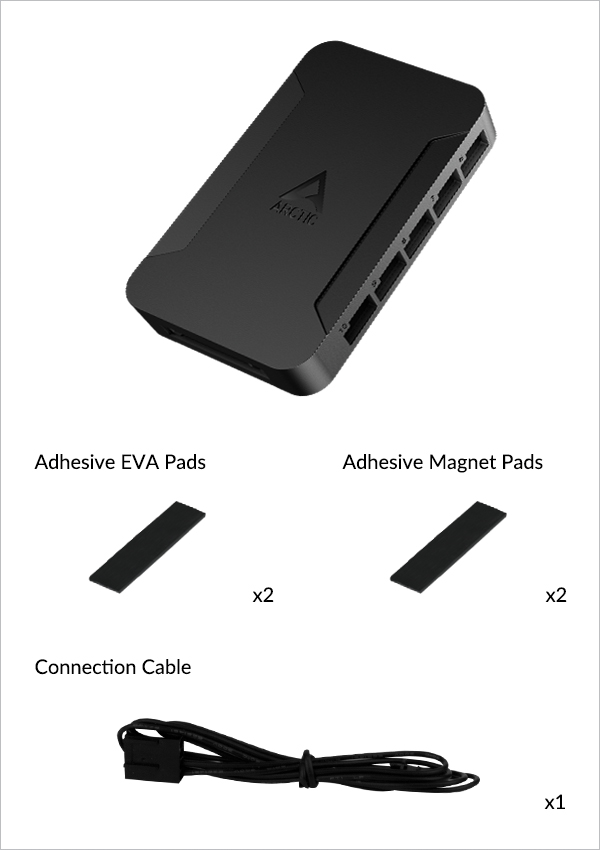

Packaging Content
Installation
Connect a SATA power cable from your power supply to the case fan hub.

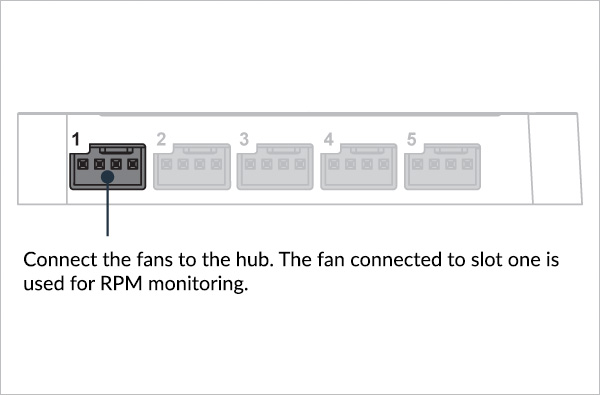

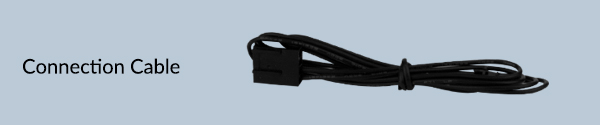

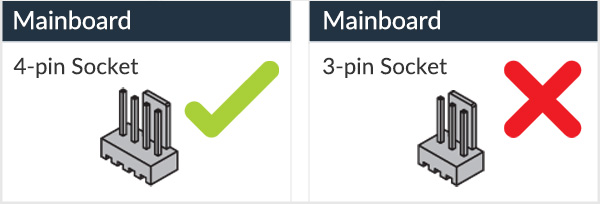

Use the Connection Cable to link the Case Fan Hub to a 4-pin motherboard Fan Header to control all connected fans simultaneously with PWM and display the fan speed of socket 1.

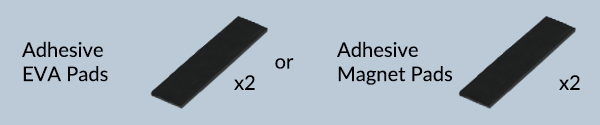

Select your preferred mounting Pad
For steel surface
For non-steel surface
Controlling the Fan
The speed of the Fans connected to Case Fan Hub can be adjusted using PWM signal from the motherboard. Please follow this procedure to adjust the settings on your motherboard.
