PH1 Philips Head Screwdriver
Please note: The AMD mounting clips are asymmetric. Make sure to mount the clips correctly by following the instruction below.
Line up the Clip A to the outlet airflow arrow, and align the Clip B to the inlet airflow arrow.
Please note: The AMD mounting clips are asymmetric. Make sure to mount the clips correctly by following the instruction below.
Line up the Clip A to the outlet airflow arrow, and align the Clip B to the inlet airflow arrow.
Please note: The AMD mounting clips are asymmetric. Make sure to mount the clips correctly by following the instruction below.
Line up the Clip A to the inlet airflow arrow, and align the Clip B to the outlet airflow arrow.
Please note: The AMD mounting clips are asymmetric. Make sure to mount the clips correctly by following the instruction below.
Line up the Clip A to the inlet airflow arrow, and align the Clip B to the outlet airflow arrow.
* Follow this link to learn more about how to apply thermal pastes correctly.
Install push fan on the inlet side of the heatsink
Install pull fan on the outlet side of the heatsink
* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.
T30 Torx Screwdriver

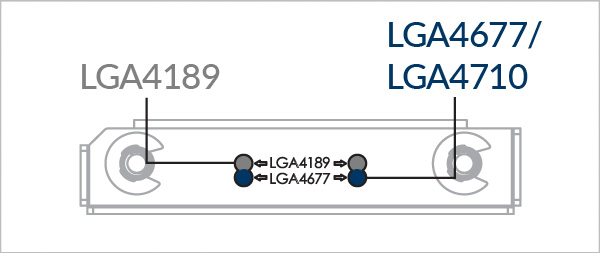

The Intel mounting clips have two sets of mounting holes.Please make sure to select the correct fixing holes for your socket.
Please be careful when removing the dust cover and check the socket orientation. Look at the socket closely and see if the pins are intact. A damaged socket may prevent the system from booting.
Please note that installing an LGA4189/ LGA4677 processor and heatsink requires a plastic CPU carrier such as the one shown above. These carriers are included with boxed retail CPUs or Motherboard and available separately via Intel sales partners for tray type CPUs.
Contact ARCTIC Support if the LGA4189 CPU Carrier are not available on your product version.
Line up Pin1 Marking on CPU carrier to outlet airflow arrow on Heatsink
Make sure all locking tabs are properly attached to heatsink
Align Pin1 marking on CPU carrier to Pin1 marking on CPU
Make sure all locking tabs are properly attached to CPU.
Unsecured locking tabs may drop the CPU and cause damage to the CPU or the motherboard
Please note that installing an LGA4189/ LGA4677 processor and heatsink requires a plastic CPU carrier such as the one shown above. These carriers are included with boxed retail CPUs or Motherboard and available separately via Intel sales partners for tray type CPUs.
Contact ARCTIC Support if the LGA4189 CPU Carrier are not available on your product version.
Line up Pin1 Marking on CPU carrier to inlet airflow arrow on Heatsink
Make sure all locking tabs are properly attached to heatsink
Align Pin1 marking on CPU carrier to Pin1 marking on CPU
Make sure all locking tabs are properly attached to CPU.
Unsecured locking tabs may drop the CPU and cause damage to the CPU or the motherboard
Please note that installing an LGA4189/ LGA4677 processor and heatsink requires a plastic CPU carrier such as the one shown above. These carriers are included with boxed retail CPUs or Motherboard and available separately via Intel sales partners for tray type CPUs.
Contact ARCTIC Support if the LGA4189 CPU Carrier are not available on your product version.
Line up Pin1 Marking on CPU carrier to inlet airflow arrow on Heatsink
Make sure all locking tabs are properly attached to heatsink
Align Pin1 marking on CPU carrier to Pin1 marking on CPU
Make sure all locking tabs are properly attached to CPU.
Unsecured locking tabs may drop the CPU and cause damage to the CPU or the motherboard
Please note that installing an LGA4189/ LGA4677 processor and heatsink requires a plastic CPU carrier such as the one shown above. These carriers are included with boxed retail CPUs or Motherboard and available separately via Intel sales partners for tray type CPUs.
Contact ARCTIC Support if the LGA4189 CPU Carrier are not available on your product version.
Line up Pin1 Marking on CPU carrier to outlet airflow arrow on Heatsink
Make sure all locking tabs are properly attached to heatsink
Align Pin1 marking on CPU carrier to Pin1 marking on CPU
Make sure all locking tabs are properly attached to CPU.
Unsecured locking tabs may drop the CPU and cause damage to the CPU or the motherboard
Align Pin1 marking on CPU carrier to Pin1 marking on socket
Follow order 1→2→3→4, 3 Turn Per-Nut.
Torque requirement: 8 in.lbf / 0.9 N.m.
Install push fan on the inlet side of the heatsink
Install pull fan on the outlet side of the heatsink
* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.
Please visit our website to purchase the Ampere LGA4926 mounting kit.
PH1 Philips Head Screwdriver
PH2 Philips Head Screwdriver
* Follow this link to learn more about how to apply thermal pastes correctly.
Install push fan on the inlet side of the heatsink
Install pull fan on the outlet side of the heatsink
For best cooling performance, we recommend adjusting the fan speed in the BIOS. Follow these instructions to optimally adjust the PWM settings.
