- In a PC Case
- In a DIY Project
How do you use your fan?

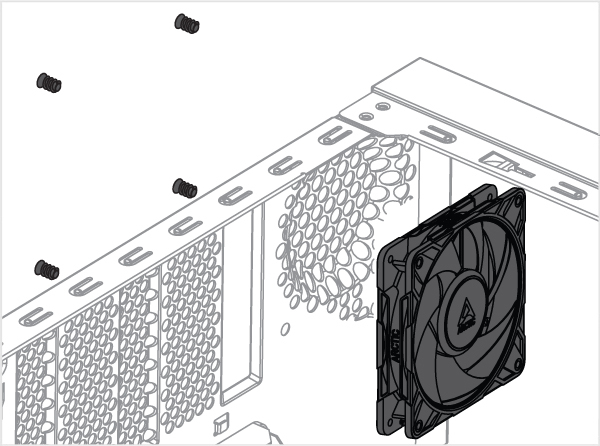

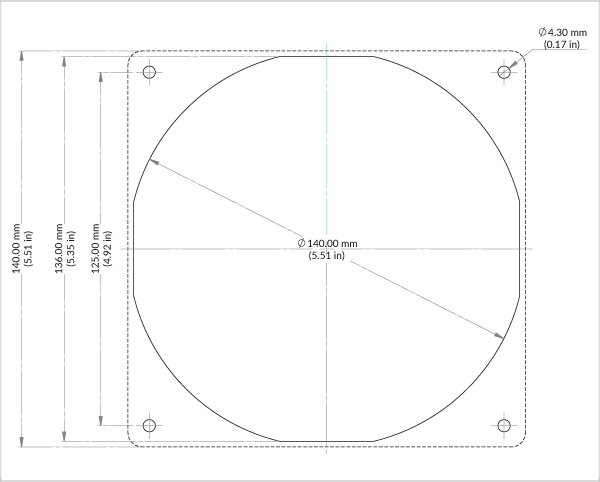

Mounting the Fan

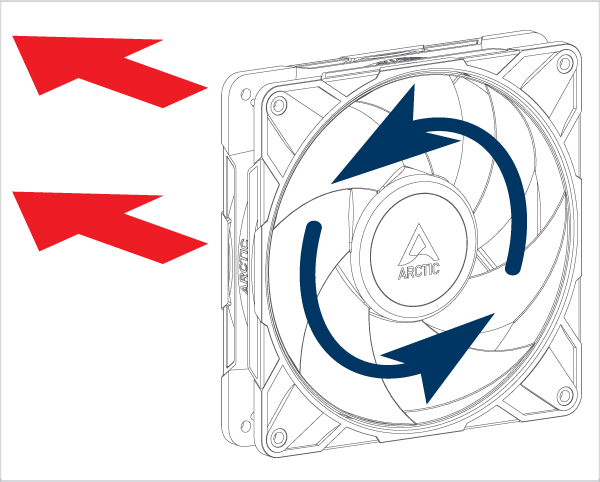

Choose Airflow direction

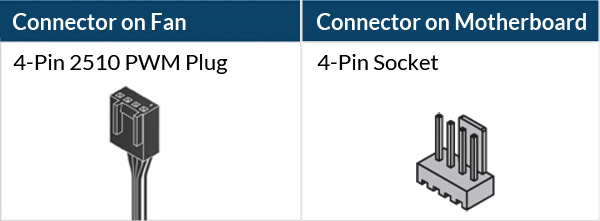

Connecting the Fan
Attention
3-pin socket is compatible with 4-pin plug but Fan PWM control will not be available.
Controlling the Fan

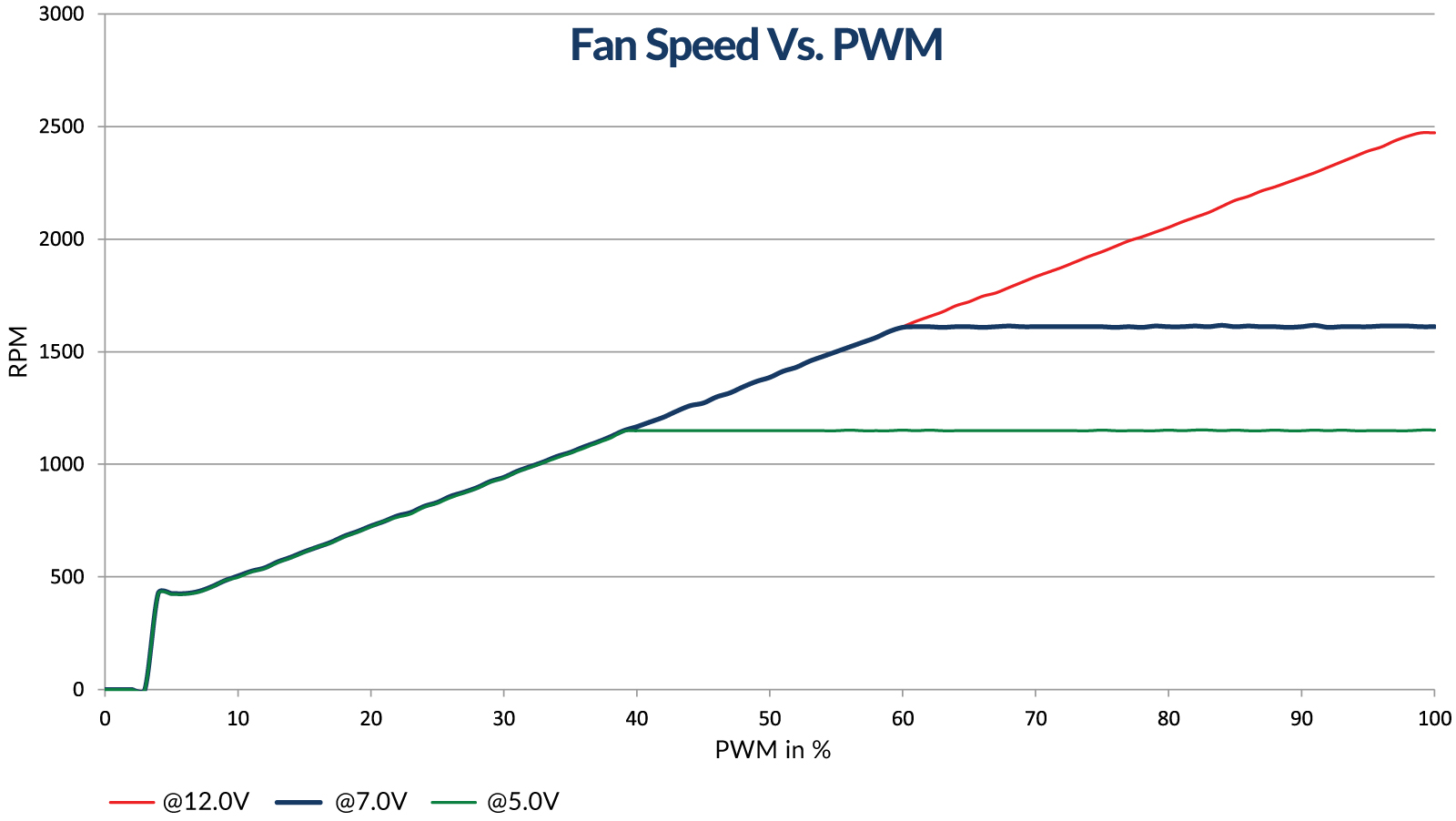

The speed of P14 Pro can be adjusted using PWM signal from the motherboard. Please follow this procedure to adjust the settings on your motherboard.
Mounting the Fan

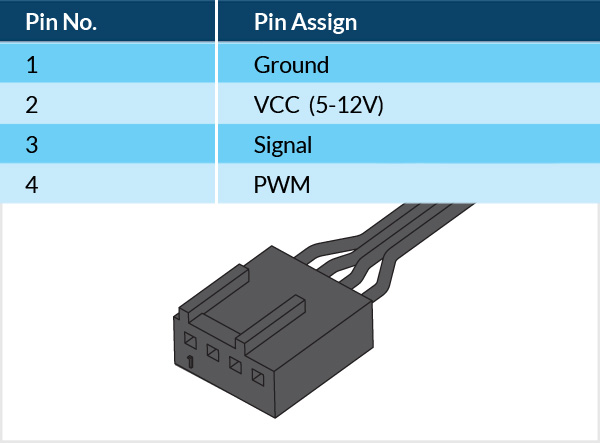

Connecting the Fan
Controlling the Fan
PWM Frequency: Target frequency 25 kHz, acceptable operational range 21 kHz to 28 kHz
Maximum voltage for logic low: VIL = 0.8 V
Absolute maximum current sourced: Imax = 5 mA (short circuit current)
Absolute maximum voltage level: Vmax = 5.25 V (open circuit voltage)
