To check the compatibility of your motherboard, please follow this link.

Required Tools

PH2 Philips Head Screwdriver

Packaging Content
Choose Connector Cable

All-in-One

Single connector PWM cable for simultaneous control of pump, VRM and radiator fan speeds, as well as pump speed monitoring.

Individual control

Control the speed of Pump / VRM Fan / Radiator Fan by individual PWM signal.

3x 4-Pin Header on motherboard required

Note: The reported speed for the pump is 50% higher than the real speed.
(i.e. 1500 RPM reported speed = 1000 RPM real speed)

Connect the PWM control cable before mounting the cooler on the mainboard.

Preparation

How (not) to mount your water cooling AIO?

Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.

The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.

Radiator below pump

Radiator above pump

Risk of bubbling noise

Installation

Only install the mounting modules in this orientation

Refer here to learn more about how to apply thermal pastes.

For AM4: The offset mounting leaves parts of the heatspread visible; this is intentional, as the CPU hotspot is off-centred, but perfectly covered.

Please make sure that you plug all connectors on the motherboard,
For PWM cable (all-in-one) = 1 plug
For PWM cable (individual control) = 3 plug

>

Please make sure that the headers are set to PWM instead of DC control. For detailed instructions, please follow the BIOS configuration guide to adjust your PWM.

Required Tools

PH2 Philips Head Screwdriver

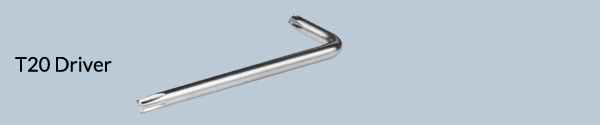

T20 Torx Screwdriver(included in packaging)

Packaging Content
Choose Connector Cable

All-in-One

Single connector PWM cable for simultaneous control of pump, VRM and radiator fan speeds, as well as pump speed monitoring.

Individual control

Control the speed of Pump / VRM Fan / Radiator Fan by individual PWM signal.

3x 4-Pin Header on motherboard required

Note: The reported speed for the pump is 50% higher than the real speed.
(i.e. 1500 RPM reported speed = 1000 RPM real speed)

Connect the PWM control cable before mounting the cooler on the mainboard.

Preparation

How (not) to mount your water cooling AIO?

Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.

The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.

Radiator below pump

Radiator above pump

Risk of bubbling noise

Contact Frame Installation

Attention

Secure the socket backplate in one of the 2 ways shown below depending on the status of your motherboard.

    Is the motherboard outside of the case?

  • Yes
  • No

Place a thick padding (e.g., packaging inner card) under the socket backplate to support the socket backplate on a flat, horizontal surface.

Open the Independent Loading Mechanism (ILM), align and place the CPU into the socket

Attention

Keep the removed parts for reassembly in the future. The ILM must be reinstalled if the motherboard is to be returned for service or warranty.

Attention

The CPU Contact Frame is made to be compatible with both LGA1851 and LGA1700 CPUs, select below to see your CPU fitment.

Align the CPU in the middle of the cutout on the CPU Contact Frame, there should be gaps (highlighted in red) on the left and right side of the CPU.

Align the CPU to the top edge of the cutout on the CPU Contact Frame, there should be a gap (highlighted in red) below the CPU.

Warning

Loosely engage all 4 screws by 2 turns before tightening them in a cross pattern evenly to avoid damaging the CPU.

The thick padding can be removed after the CPU Contact Frame is tightened.

Apply painter’s tape on the backside of the motherboard to secure the socket backplate. Lay the motherboard flat on a horizontal surface.

Open the Independent Loading Mechanism (ILM), align and place the CPU into the socket

Attention

Keep the removed parts for reassembly in the future. The ILM must be reinstalled if the motherboard is to be returned for service or warranty.

Attention

The CPU Contact Frame is made to be compatible with both LGA1851 and LGA1700 CPUs, select below to see your CPU fitment.

Align the CPU in the middle of the cutout on the CPU Contact Frame, there should be gaps (highlighted in red) on the left and right side of the CPU.

Align the CPU to the top edge of the cutout on the CPU Contact Frame, there should be a gap (highlighted in red) below the CPU.

Warning

Loosely engage all 4 screws by 2 turns before tightening them in a cross pattern evenly to avoid damaging the CPU.

The painter’s tape applied to the backplate can be removed after the CPU Contact Frame is tightened.

Installation

Refer here to learn more about how to apply thermal pastes.

Please make sure that you plug all connectors on the motherboard,
For PWM cable (all-in-one) = 1 plug
For PWM cable (individual control) = 3 plug

Please make sure that the headers are set to PWM instead of DC control. For detailed instructions, please follow the BIOS configuration guide to adjust your PWM.
