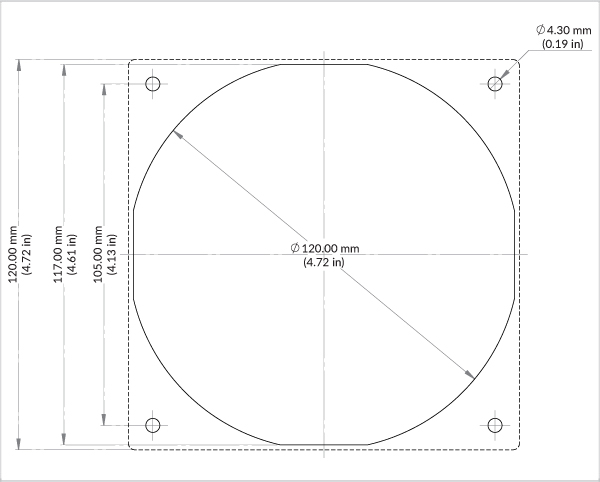

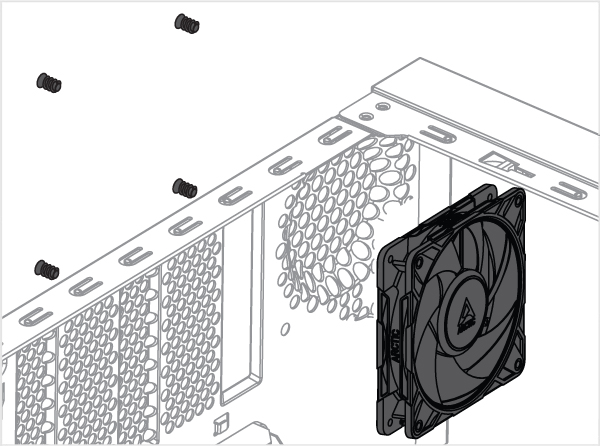

Mounting the Fan

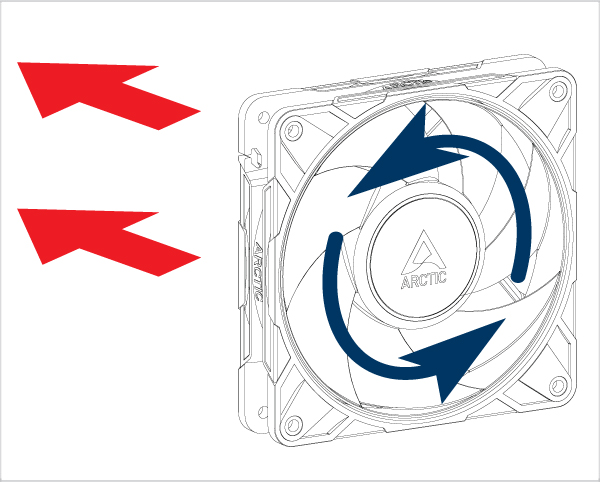

Choose Airflow direction

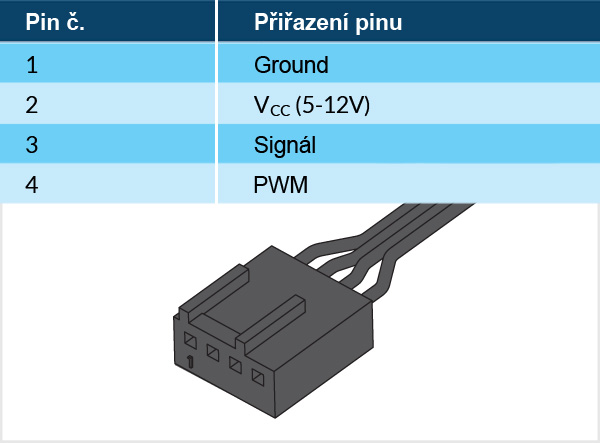

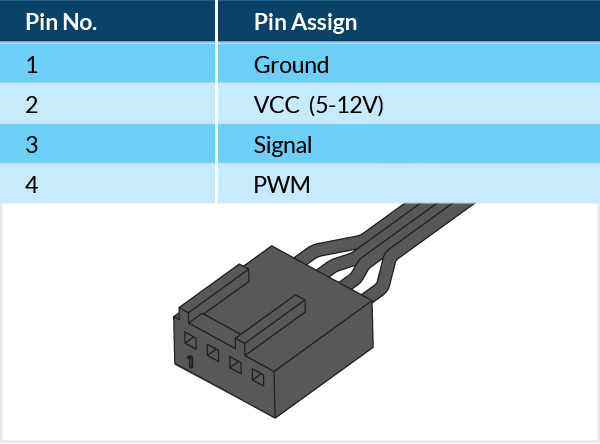

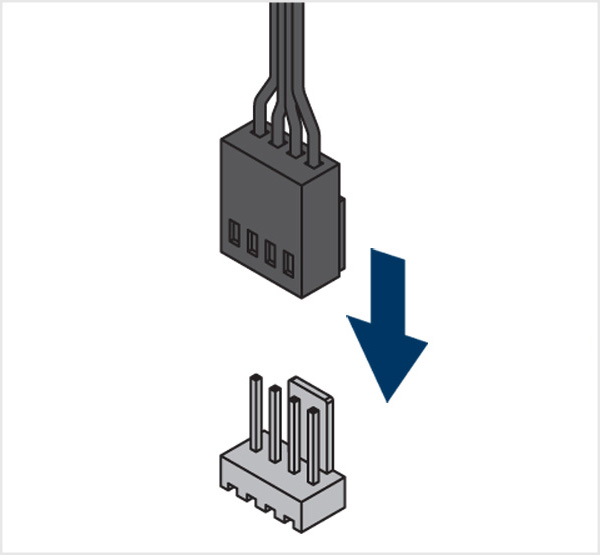

Connecting the Fan
Attention

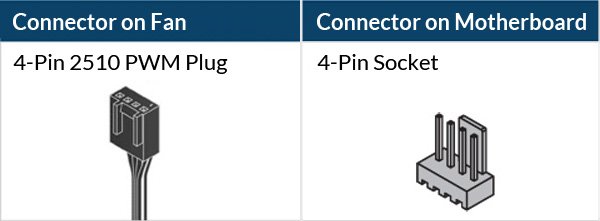

3-pin socket is compatible with 4-pin plug but Fan PWM control will not be available.
Controlling the Fan
In a PC

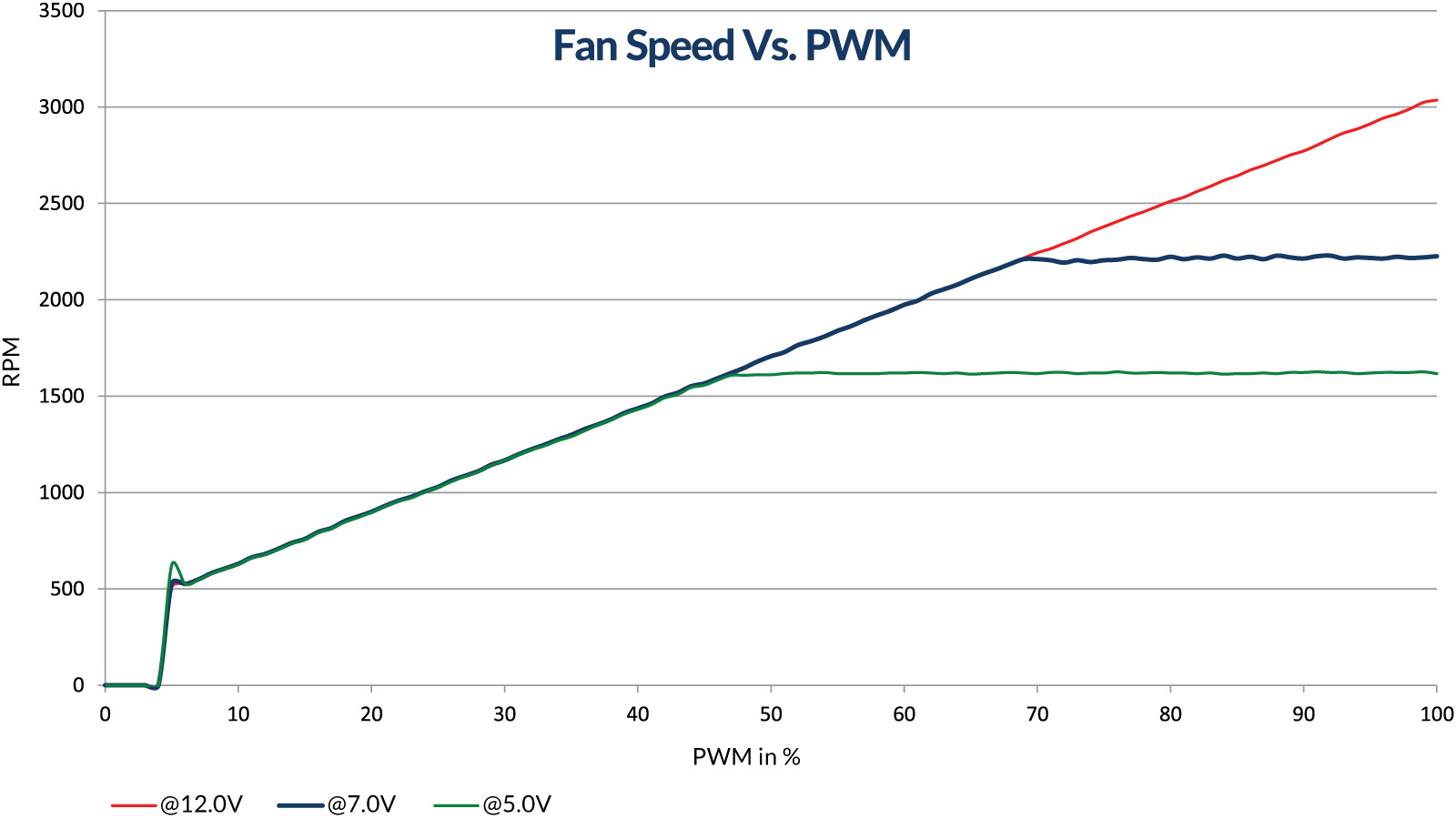

The speed of P12 Pro can be adjusted using PWM signal from the motherboard. Please follow this procedure to adjust the settings on your motherboard.
In a DIY Project
PWM Frequency: Target frequency 25 kHz, acceptable operational range 21 kHz to 28 kHz
Maximum voltage for logic low: VIL = 0.8 V
Absolute maximum current sourced: Imax = 5 mA (short circuit current)
Absolute maximum voltage level: Vmax = 5.25 V (open circuit voltage)
