Mounting the Fan

Choose Airflow direction

Mounting in a PC case

Mounting in a DIY Project

Mounting pattern

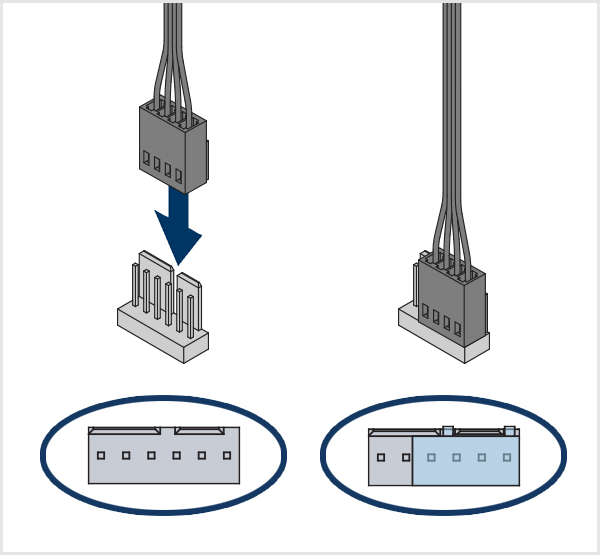

Connecting the Fan

In a PC

* Fan PWM control will not be available in this configuration.

In a DIY Project

* Please make sure that the power supply can provide 0.5 A

Controlling the Fan

In a PC

The speed of S4028-6K can be adjusted using PWM signal from the motherboard. Please follow this procedure to adjust the settings on your motherboard.

To control more than 5 fans from one unique header, we recommend you to use the ARCTIC Case Fan Hub. Its external SATA power will circumvent the header current limitation.

In a DIY Project

PWM Frequency: Target frequency 25 kHz, acceptable operational range 21 kHz to 28 kHz
Maximum voltage for logic low: VIL = 0.8 V
Absolute maximum current sourced: lmax = 5 mA (short circuit current)
Absolute maximum voltage level: VMax = 5.25 V (open circuit voltage)

Fan Technical Documentation
