Alle von ARCTIC versendeten Kühler sind bereits ab Werk mit LGA1700 Prozessoren kompatibel. Bei Resellern erworbene Kühler können auch noch ohne entsprechendes Zubehör ausgeliefert worden sein. Wende dich in diesem Fall bitte an unseren Kundensupport.
* packed in the same bag
Vorbereitung

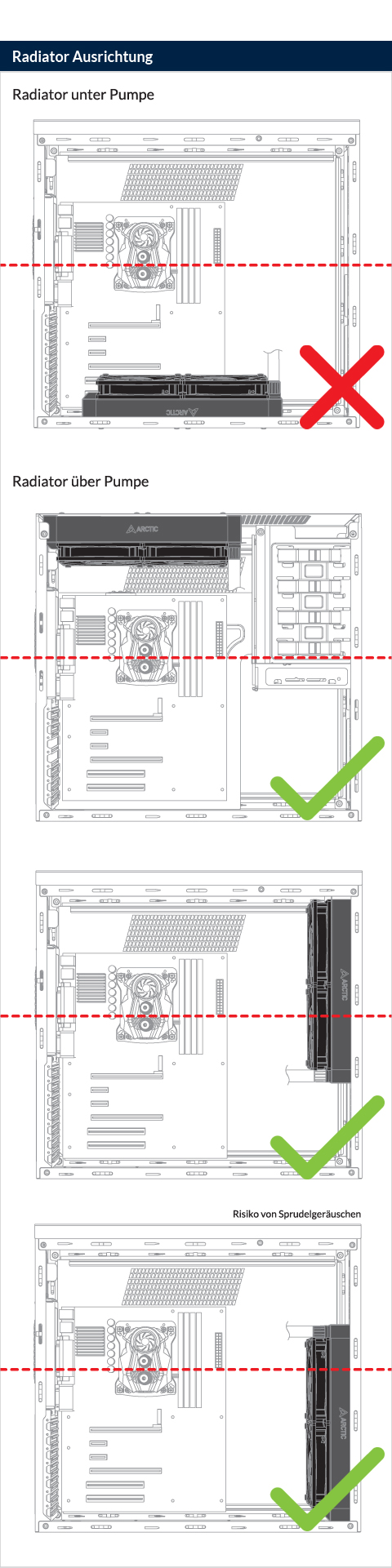

How (not) to mount your water cooling AIO?
(by GamersNexus)
Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.
The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.
Wenden Sie keine übermäßige Kraft an, wenn die Schraube nicht korrekt eingedreht werden kann. Stellen Sie sicher, dass die richtige Schraube verwendet wird.
Installation
If you have received a product including the LGA 1700 upgrade kit. Be careful to use correct standoffs with the correct backplate. Using wrong standoff may lead to malfunction or even damage motherboard.
The thermal grease can be applied for twice (one drop application).
* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.
To get the best out of your cooler, it is recommended to adjust the fan speed control in the Bios, follow this guide to adjust your PWM.
The ARCTIC A-RGB controller is available as standalone product or included in some models.
Follow this guide to install ARCTIC A-RGB controller.
** If your Liquid Freezer II does not come with the LGA 1700 upgrade kit, please contact us through the contact form to get upgrade kit shipped to you. Tap to go to the installation.
Vorbereitung
How (not) to mount your water cooling AIO?
(by GamersNexus)
Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.
The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.
Wenden Sie keine übermäßige Kraft an, wenn die Schraube nicht korrekt eingedreht werden kann. Stellen Sie sicher, dass die richtige Schraube verwendet wird.
Installation
The thermal grease can be applied for twice (one drop application).
* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.
To get the best out of your cooler, it is recommended to adjust the fan speed control in the Bios, follow this guide to adjust your PWM.
The ARCTIC A-RGB controller is available as standalone product or included in some models.
Follow this guide to install ARCTIC A-RGB controller.
Vorbereitung
How (not) to mount your water cooling AIO?
(by GamersNexus)
Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.
The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.
Wenden Sie keine übermäßige Kraft an, wenn die Schraube nicht korrekt eingedreht werden kann. Stellen Sie sicher, dass die richtige Schraube verwendet wird.
Installation
AMD Ryzen 3000/5000/7000 series processor has a chiplet-based CPU construction. It shifts the hot spots from center of the package to bottom side. To provide better cooling to the hot chiplets, Liquid Freezer II provides an offset mounting, so that the cooler is in the optimal position.
Contact ARCTIC Support if the AMD clips are not available on your product version.
* packed in the same bag
The thermal grease can be applied for twice (one drop application)
To get the best out of your cooler, it is recommended to adjust the fan speed control in the Bios, follow this guide to adjust your PWM.
The ARCTIC A-RGB controller is available as standalone product or included in some models.
Follow this guide to install ARCTIC A-RGB controller.
Um das Beste aus Ihrem Kühler herauszuholen, wird empfohlen, die Lüfterdrehzahl im Bios einzustellen. Folgen Sie dieser Anleitung, um die PWM-Kurve optimal einzustellen.
The ARCTIC A-RGB controller is available as standalone product or included in some models. Follow this guide to install ARCTIC A-RGB controller..
