All coolers shipped by ARCTIC are already compatible with LGA1700 processors. Coolers purchased from resellers may have been delivered without the corresponding accessories. In this case, please contact our customer support.

¡Advertencia!

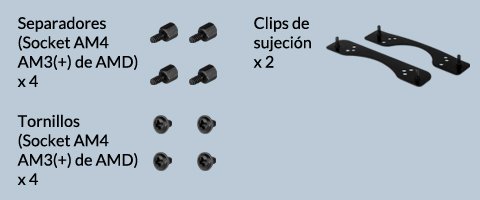

Algunos productos se han enviado con tornillos incorrectos, lo que hace imposible el montaje en AMD AM4.

Los tornillos incorrectos son

Screws (AMD Socket AM4, AM3)

Puede reemplazarlos usando tornillos M3x5, comúnmente usados para montar SSD de 2,5'' o HDD..

Por favor, contáctenos a través del formulario de contacto para recibir tornillos de reemplazo gratis.

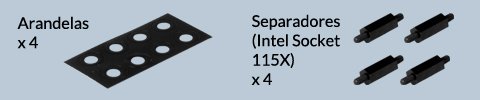

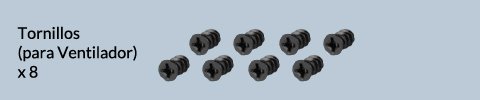

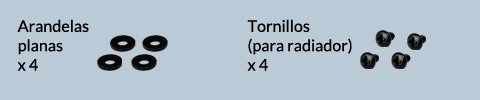

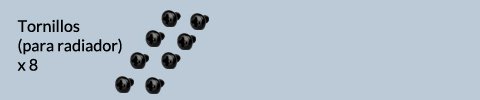

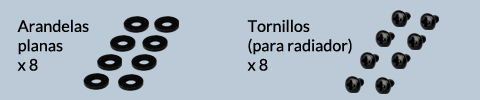

Contenido del embalaje
Liquid Freezer II 280 Rev 3
Intel Socket – 1200/115x

Preparación

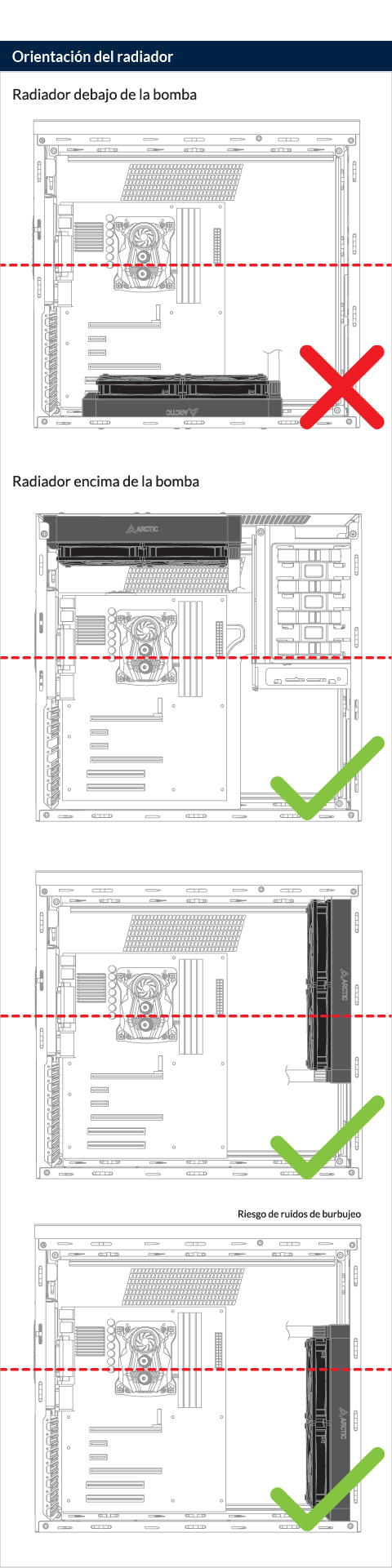

How (not) to mount your water cooling AIO?
(by GamersNexus)

Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.

The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

Instalación

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

If you have received a product including the LGA 1700 upgrade kit. Be careful to use correct standoffs with the correct backplate. Using wrong standoff may lead to malfunction or even damage motherboard.

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.

Liquid Freezer II 280 Rev 3

To get the best out of your cooler, it is recommended to adjust the fan speed control in the Bios, follow this guide to adjust your PWM.

Mira el video

Intel Socket – 1700

** Si su Liquid Freezer II no viene con el kit de actualización LGA 1700, contáctenos a través del formulario de contacto para Reciba el kit de actualización. Toque para ir a la instalación .

Intel Socket – 2066, 2011(-3)

Preparación

How (not) to mount your water cooling AIO?
(by GamersNexus)

Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.

The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

Instalación

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.

Liquid Freezer II 280 Rev 3

To get the best out of your cooler, it is recommended to adjust the fan speed control in the Bios, follow this guide to adjust your PWM.

AMD Socket – AM5 / AM4 / AM3(+)

Preparación

How (not) to mount your water cooling AIO?
(by GamersNexus)

Steve from GamersNexus explains you the mistakes to avoid while assembling your water cooling AIO in your PC case.

The featured video is independently produced by GamersNexus, ARCTIC has been authorized to use by GamersNexus.

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

Instalación

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

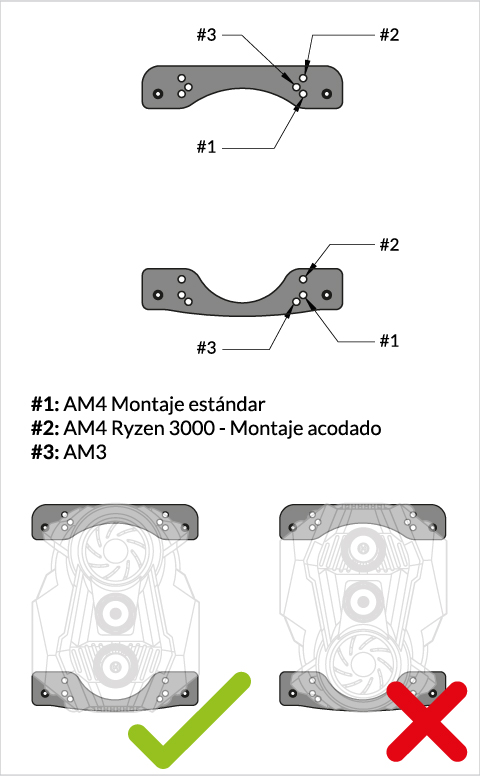

Motherboard Compatibility

Some AMD AM4 motherboards are unfortunately not compatible with the offset mount for Ryzen 3000/5000 series. If the mounting clips collide with components surrounding the socket area, you need to assembly the cooler using the standard mounting without offset.

You can request adjusted mounting clips to ARCTIC using this request form.

Liquid Freezer II 280 Rev 3

Contact ARCTIC Support if the AMD clips are not available on your product version.

Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3 Liquid Freezer II 280 Rev 3

* Some mechanical interference with surrounding components may appear. The fan will not be controllable by PWM.

Liquid Freezer II 280 Rev 3

To get the best out of your cooler, it is recommended to adjust the fan speed control in the Bios, follow this guide to adjust your PWM.

Mira el video

Configuración de la Bios

Para obtener lo mejor de tu disipador, se recomienda ajustar el control de velocidad del ventilador en la Bios, siga esta guía para ajustar la PWM.
