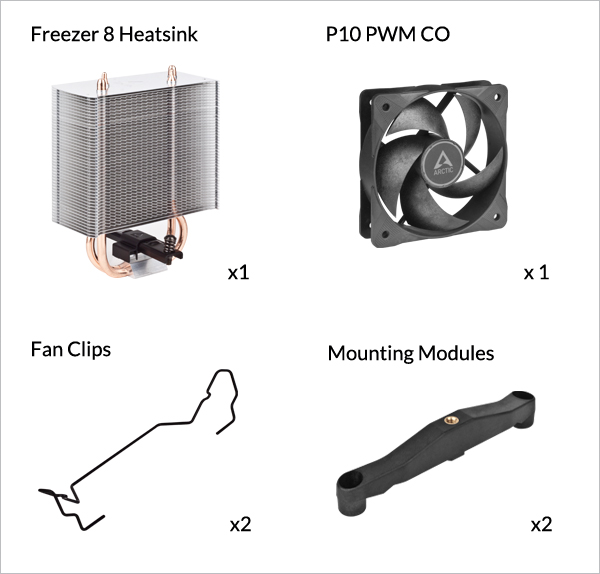

Required Tools
PH2 Philips Head Screwdriver

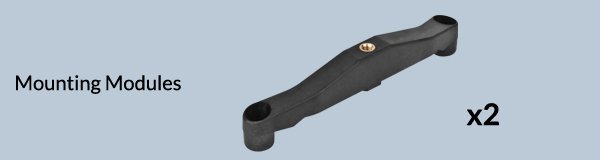

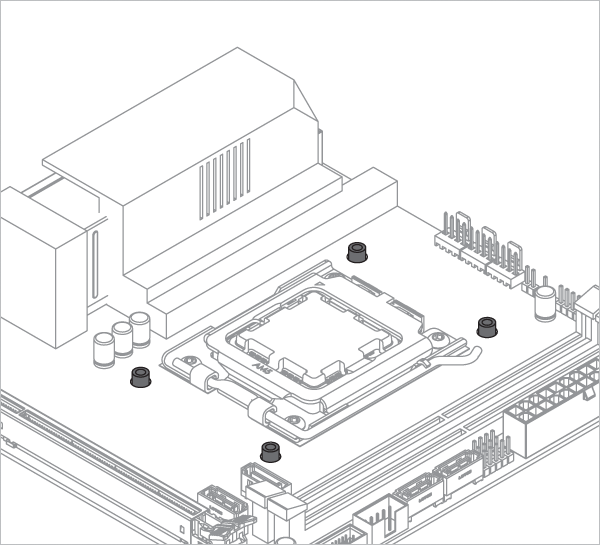

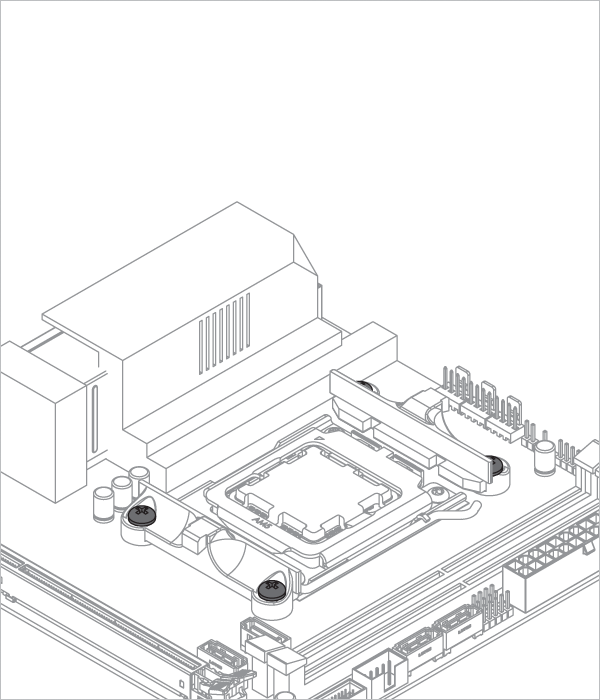

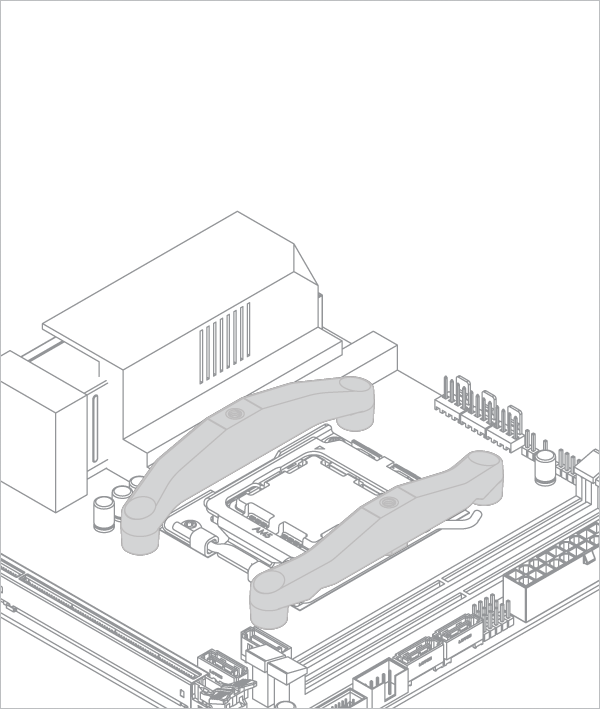

Keep the screws for later installation of the mounting modules.

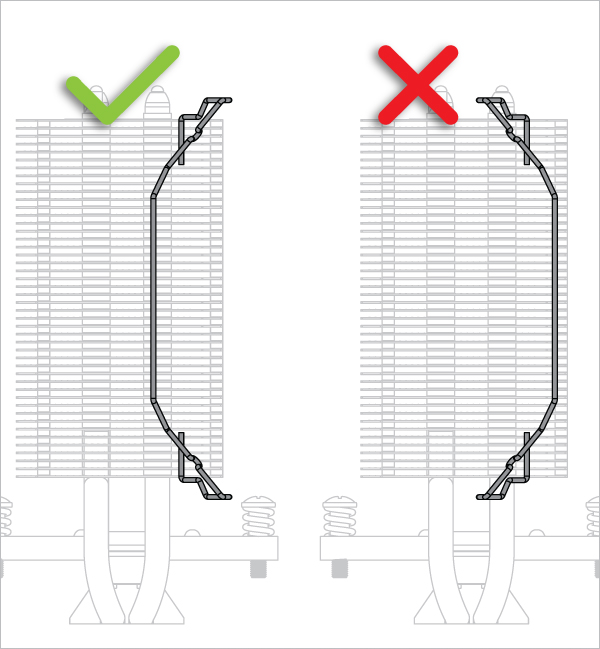

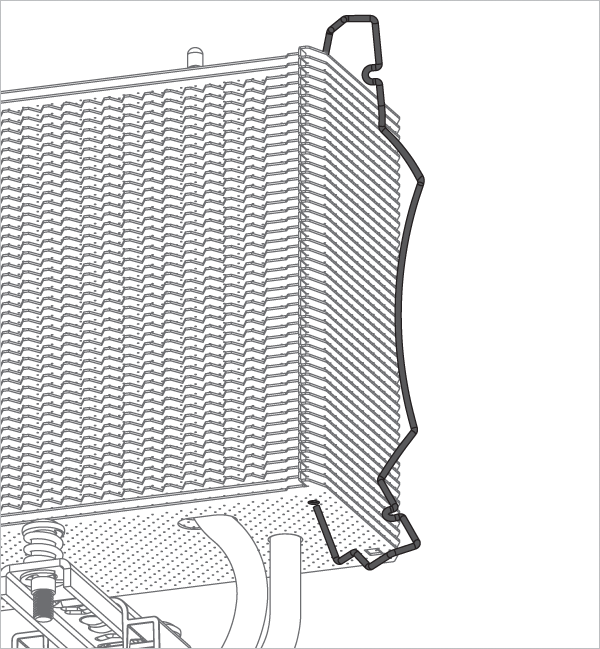

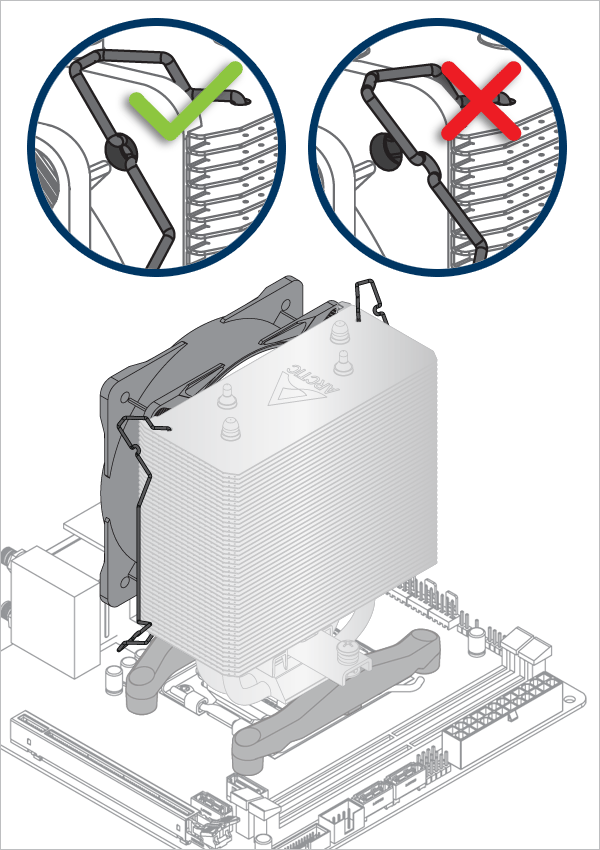

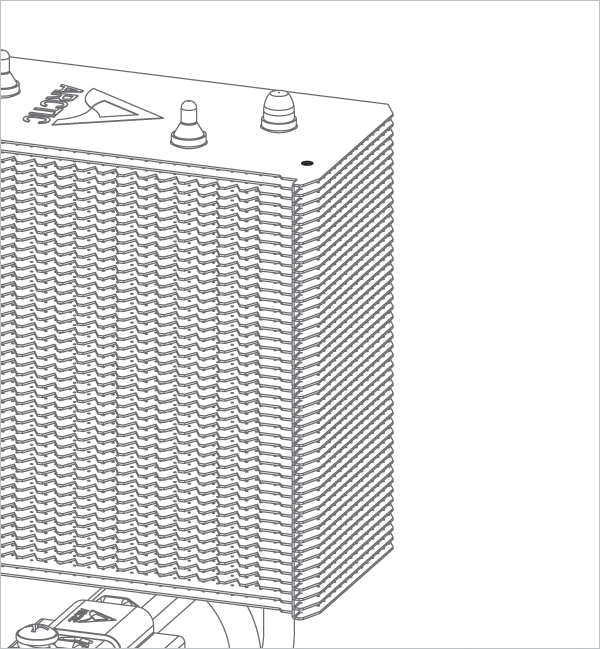

Install the fan clips in the alignment shown below.
Select your CPU Model
Complete the CPU selection to proceed with the installation.

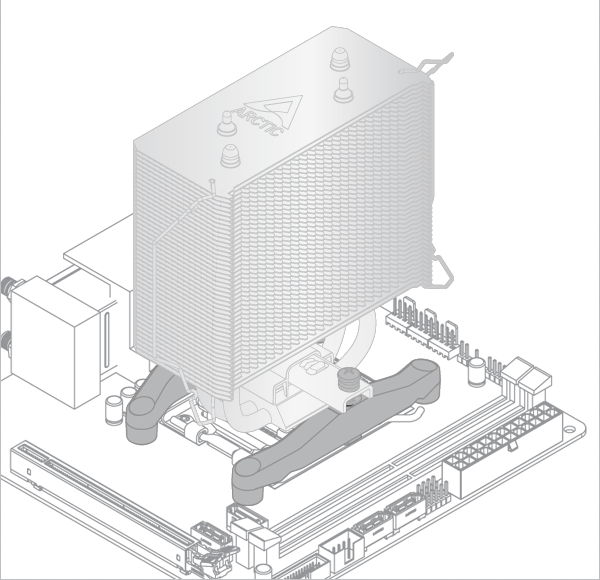

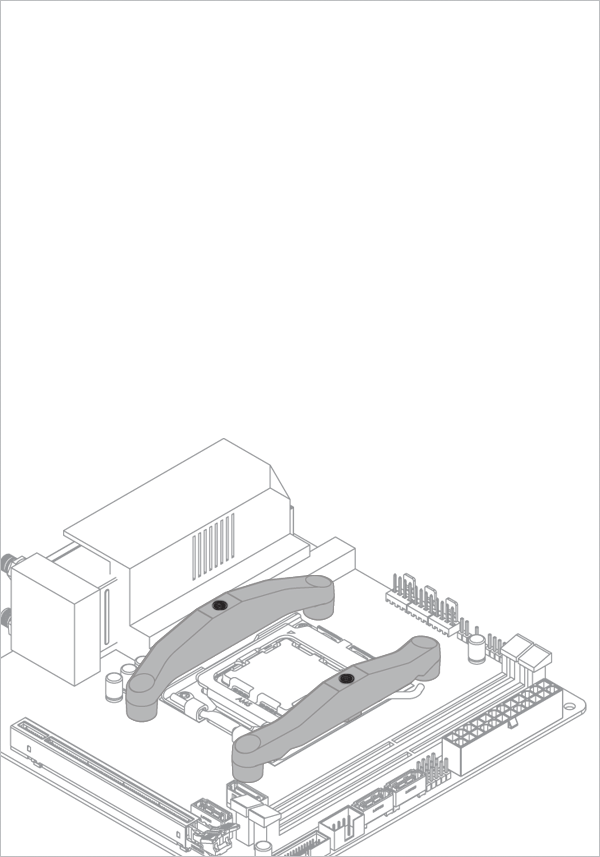

Center Mount Configuration

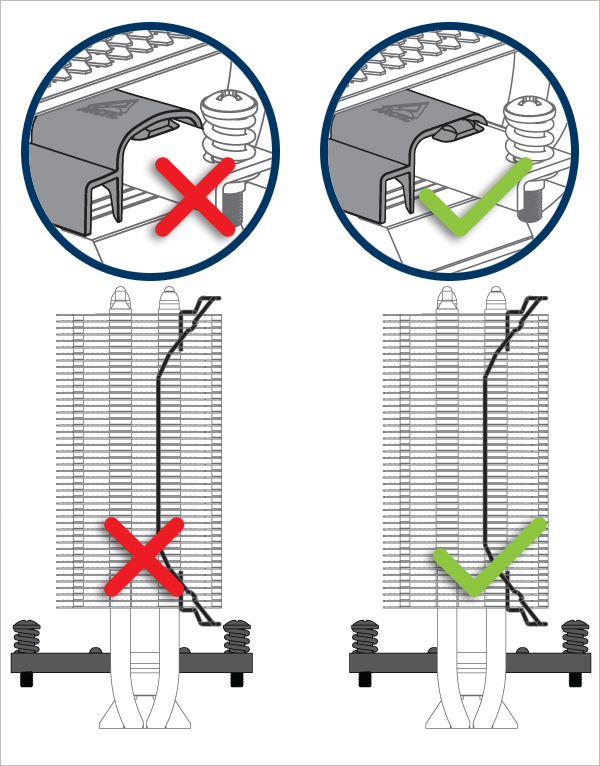

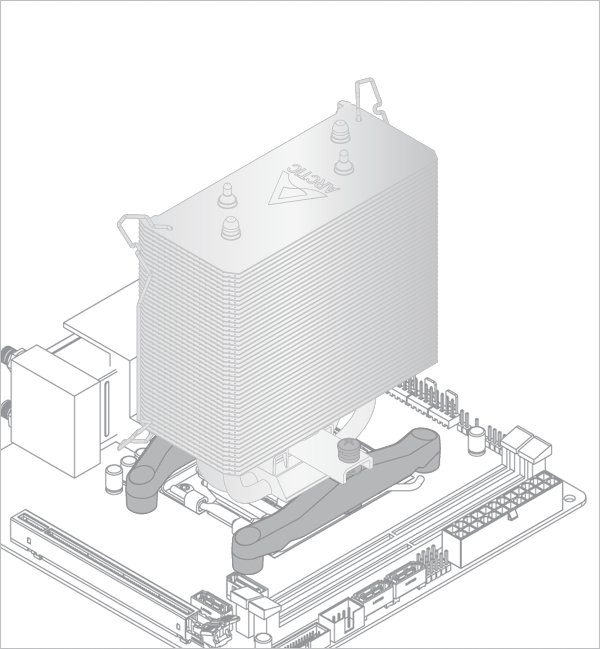

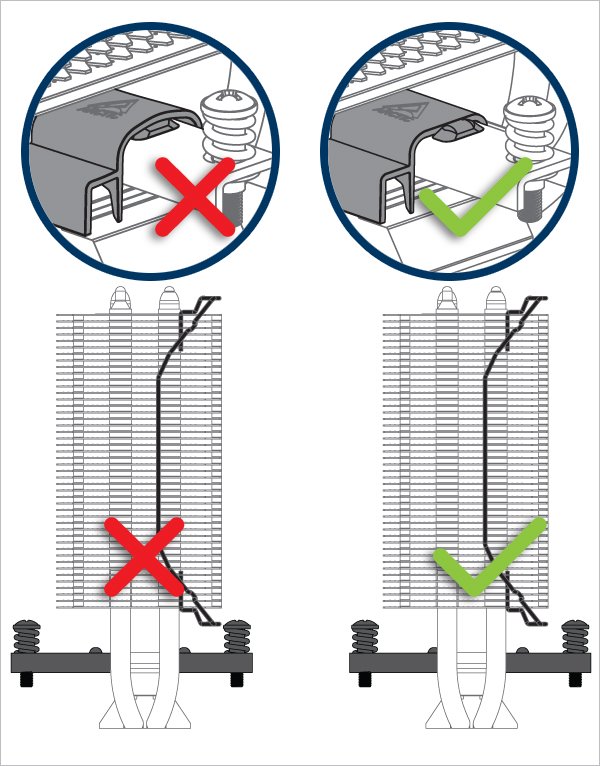

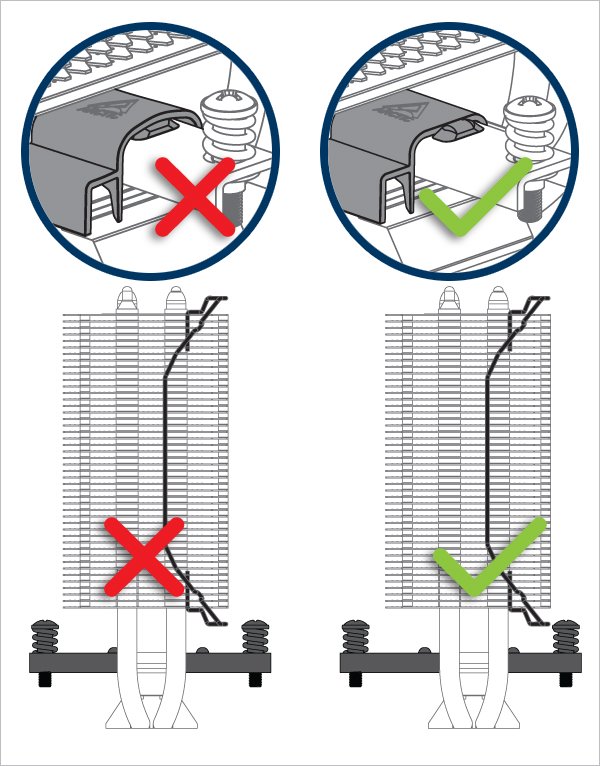

Check that the mounting bar is aligned as shown below. The mounting bar can be pushed sideways in to the correct alignment.
- Back Exhaust
- Back Intake

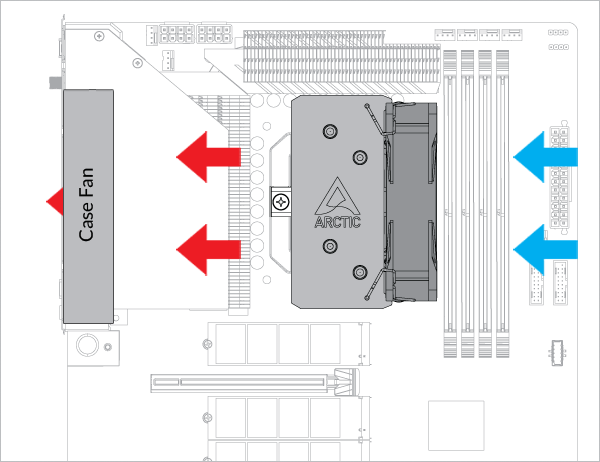

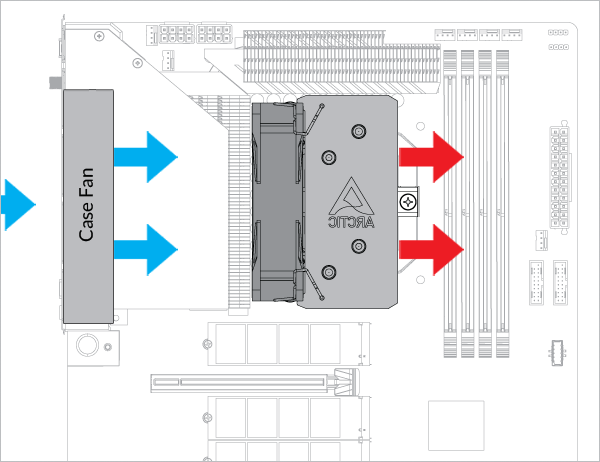

Select airflow direction
The fans can be rotated to aid cable management
The fans can be rotated to aid cable management

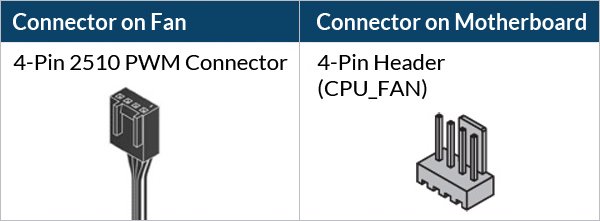

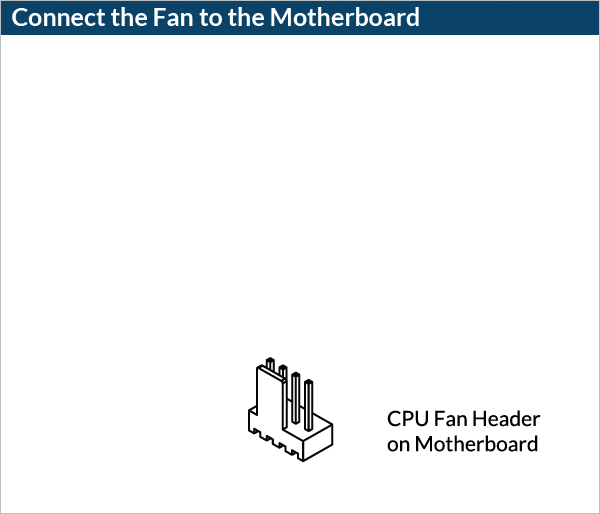

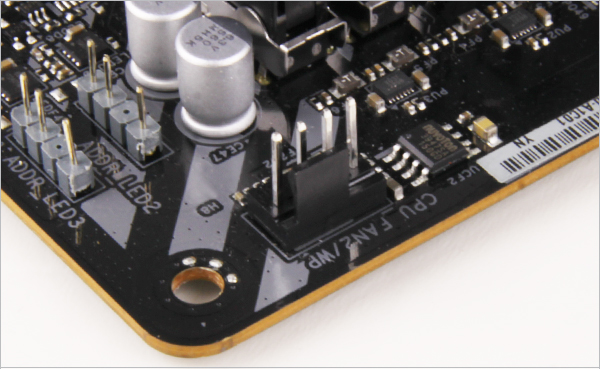

To get the best out of your cooler, it is recommended to adjust the fan speed control in the BIOS, follow this guide to adjust your PWM.
Offset Mount Configuration

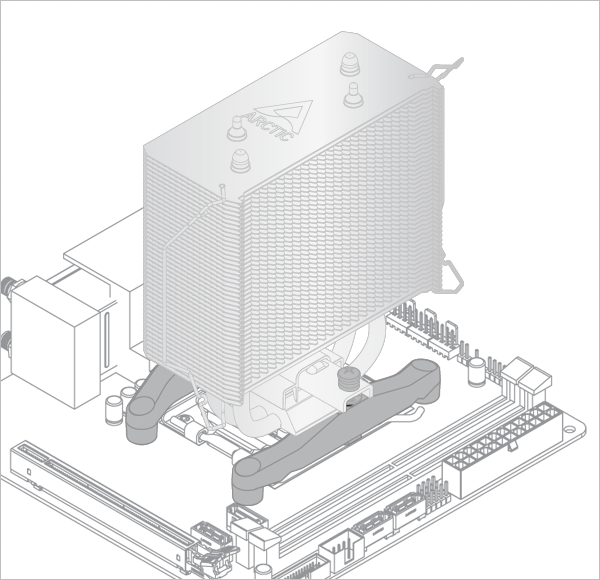

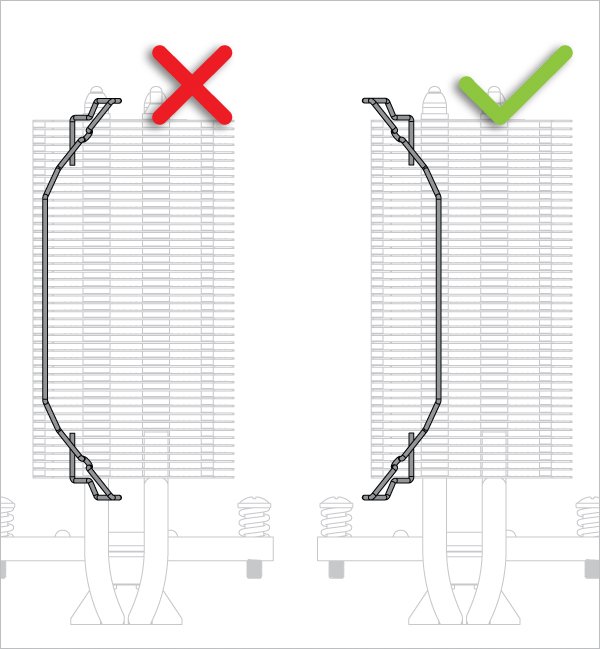

Check that the mounting bar is aligned as shown below. The mounting bar can be pushed sideways in to the correct alignment.
Only back exhaust configuration is supported on offset mount setting.

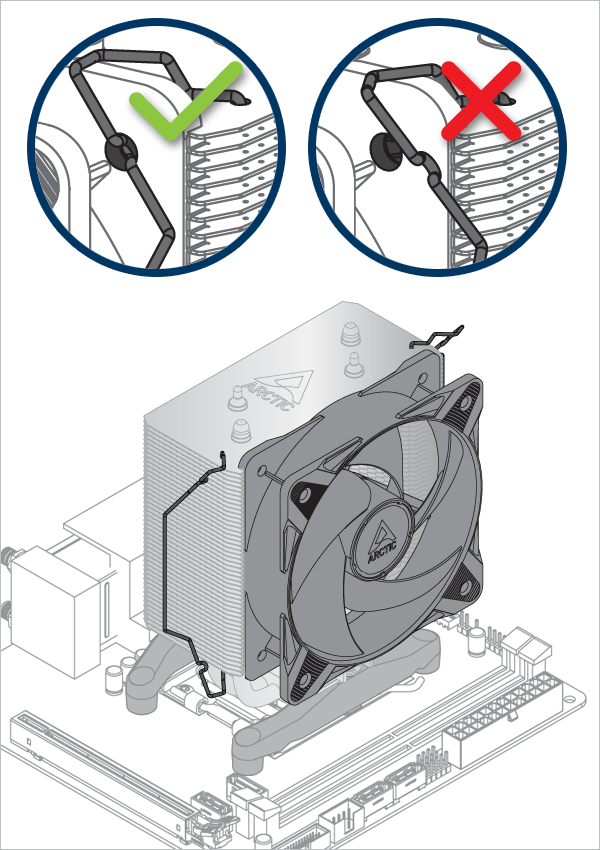

The fans can be rotated to aid cable management
To get the best out of your cooler, it is recommended to adjust the fan speed control in the BIOS, follow this guide to adjust your PWM.
